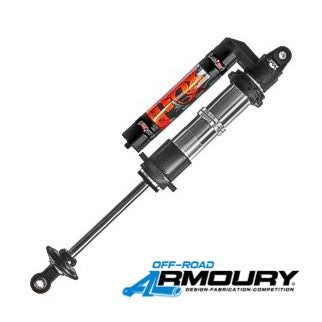

2.5 x 16" Travel FACTORY RACE SERIES PIGGYBACK COIL-OVER

  • Sale
  • Regular price £664.56
  • Will be in stock after
Tax included.


Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.




FAMILY FEATURES

Body Smooth bore and honed seamless steel
Body Plating Zinc plated for a long-lasting finish
Components Black anodized, CNC machined 6061-T6 billet aluminum
Piston 7075 hard-anodized high-flow aluminum piston
Valving Tunable, velocity sensitive deburred valve shims
Hose Reusable ORB O-ring port hose fittings for superior seal with remote reservoirs
Seals High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Shafts 7/8" 17-4 H900 hard chrome plated stainless steel, hard chrome plated
Bearing Spherical, PFTE-lined, heat-treated alloy steel
Adjustments
  • RRB (Rotating Reservoir Bridge)
  • Spring preload ring
  • Dual stage crossover ring
  • Compression valving
  • Rebound valving
  • Optional DSC Adjuster
